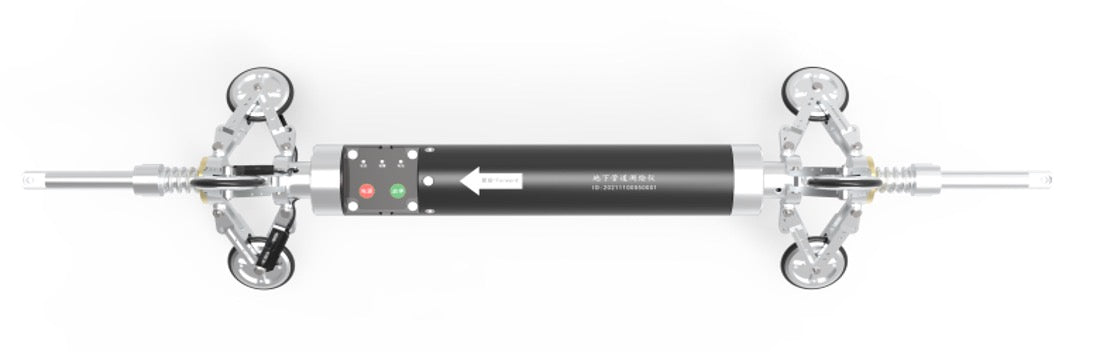

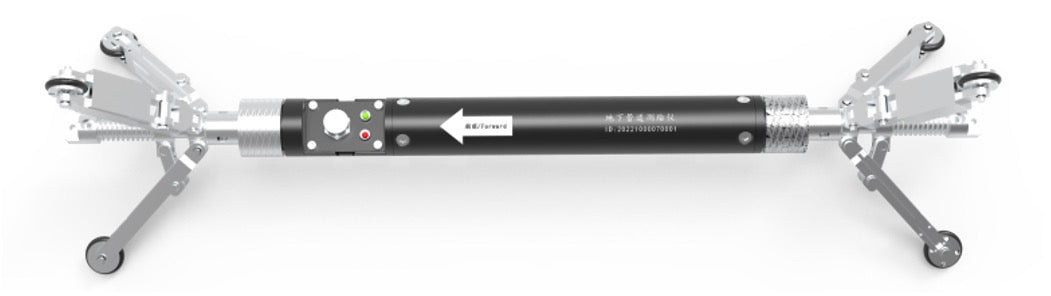

Pipeline Pigging Instrument

@ Product of SuperNavi Technology, Ltd.

It is for tracking and mapping concealed pipelines in non-excavation projects. By the help of traction, the instrument moves through the pipeline and obtains reference coordinates of both pipeline ends. It employs a 3D Cartesian coordinate system to accurately calculate and output the trajectory of the underground pipeline.

Main characteristics:

• Size: D61mm; L352mm (including wheel 834mm)
• Surveying accuracy: Horizontal ≤×0.12% L, Vertical ≤L×0.10% L (L = pipeline length)
• Charging time: 5 hours
• Working life More than 12 hours per charge
• Storage space: 8G
• Protection level: IP68
• Applicable pipeline diameter: 110-1000mm
• Drag speed 0-3m/s
• Resistance to electromagnetic interference
• Easy operation: quick connection and rapid self-check
• Stable performance: minimal impact from pipeline weld scars
• (Optional) Used together with Portable Gyro North Finder, another product in this store
